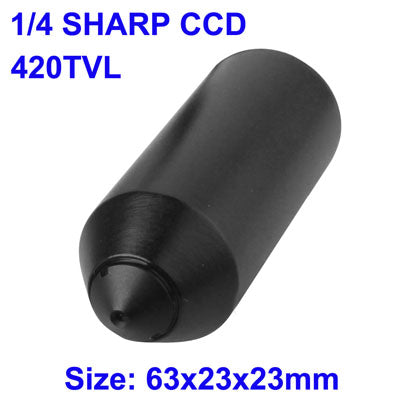

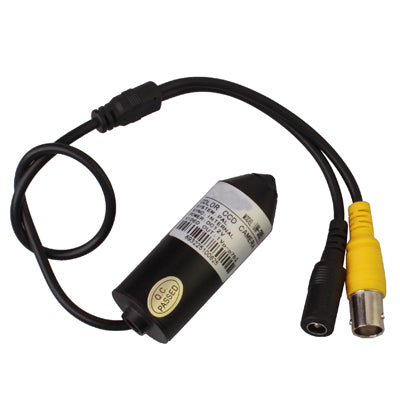

1/4 SHARP Color 420TVL Mini CCD Camera, Mini Pin Hole Lens Camera, Size: 63 x 23 x 23mm, 420TVL
1/4 SHARP Color 420TVL Mini CCD Camera, Mini Pin Hole Lens Camera, Size: 63 x 23 x 23mm, 420TVL
Regular price
£54.60 GBP
Regular price
Sale price
£54.60 GBP
Unit price
/
per
Taxes included.
3.7mm Mini pin hole lens camera
1) Adopt Sharp low illumination CCD, max horizontal resolution reach 420TVL
2) Mini pin hole lens camera
3) Industrial design and production, precise circuit & structure
4) Unique design, with bracket for easy installation
** Specification:
1) CCD Type: 1/4" Sharp CCD
2) Pixels: PAL: 500H x 582V NTSC: 510H x 492V
3) Scanning System: PAL/NTSC
4) Horizontal Resolution: 420TVL
5) Minimum Illumination: 1.0LUX/F1.2
6) S/N Ratio: ≥48dB
7) Video Output: 1.0Vp-p/75Ω
8) AGC: Auto
9) Backlight Compensation: Auto
10) Exposure Mode: EE
11) Electronic Shutter: PAL: 1/50-1/100000sec, NTSC: 1/60-1/100000sec
12) Gamma Correction: 0.45
13) Sync. System: Internal Synchronization
14) Lens: 3.7mm Standard
15) Audio: Optional
16) Power Supply: DC12V ± 5%
17) Operation Temperature: -10℃--50℃
18) Size: 63 x 23 x 23mm
1) Adopt Sharp low illumination CCD, max horizontal resolution reach 420TVL
2) Mini pin hole lens camera
3) Industrial design and production, precise circuit & structure
4) Unique design, with bracket for easy installation
** Specification:
1) CCD Type: 1/4" Sharp CCD
2) Pixels: PAL: 500H x 582V NTSC: 510H x 492V
3) Scanning System: PAL/NTSC
4) Horizontal Resolution: 420TVL
5) Minimum Illumination: 1.0LUX/F1.2
6) S/N Ratio: ≥48dB
7) Video Output: 1.0Vp-p/75Ω
8) AGC: Auto
9) Backlight Compensation: Auto
10) Exposure Mode: EE
11) Electronic Shutter: PAL: 1/50-1/100000sec, NTSC: 1/60-1/100000sec
12) Gamma Correction: 0.45
13) Sync. System: Internal Synchronization
14) Lens: 3.7mm Standard
15) Audio: Optional
16) Power Supply: DC12V ± 5%
17) Operation Temperature: -10℃--50℃
18) Size: 63 x 23 x 23mm
